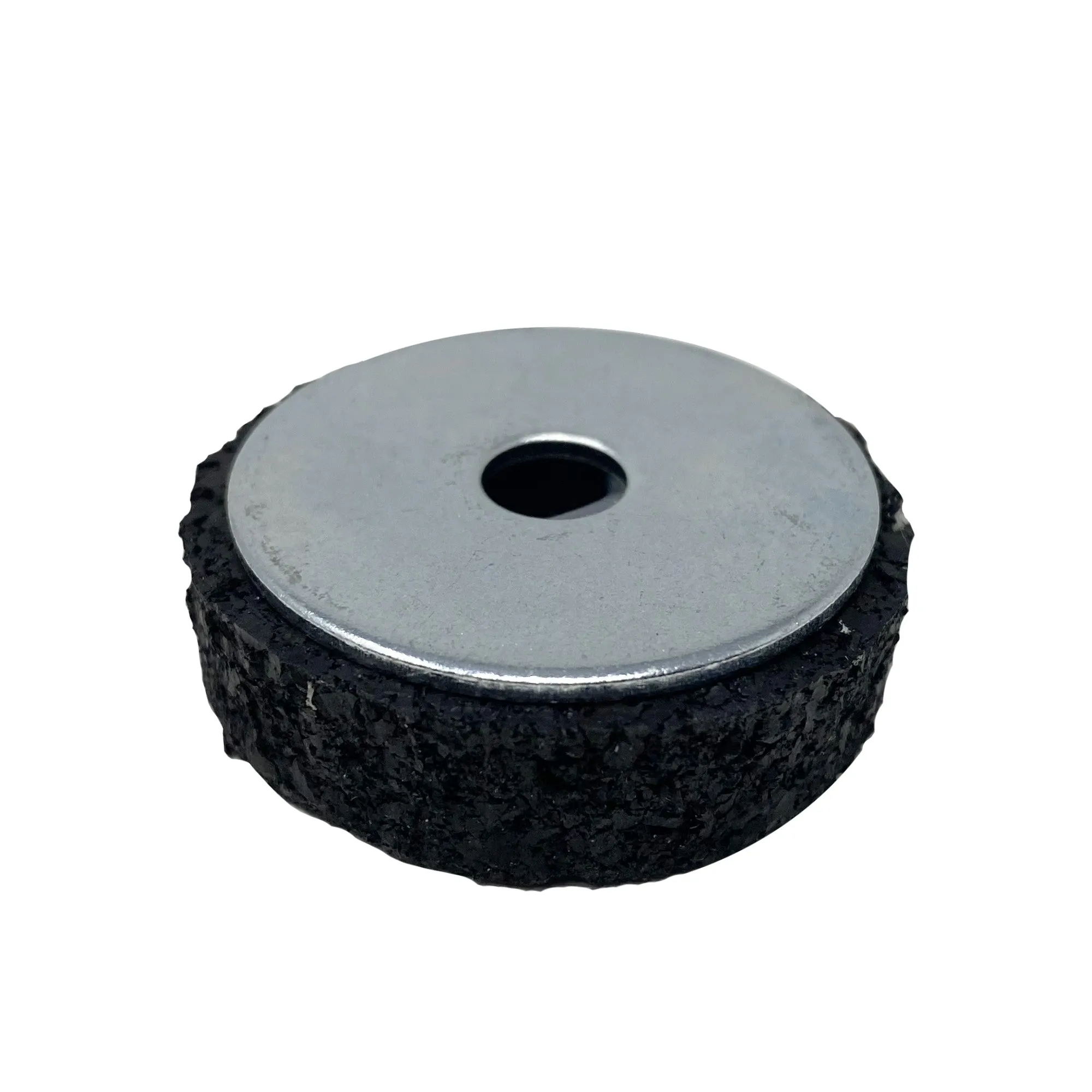

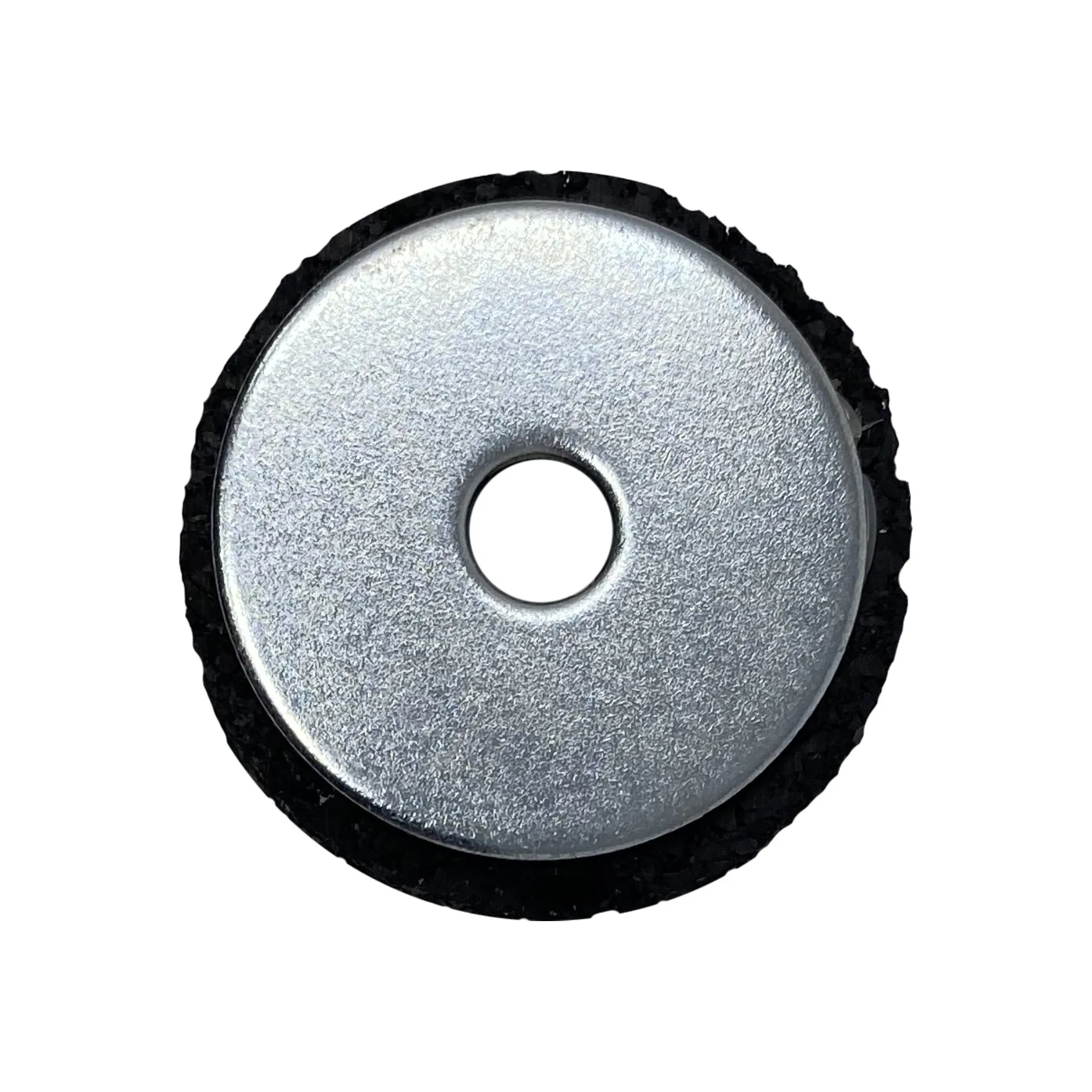

The GenieMat FIS is a flanking isolation system that consists of a fastener isolation bushing and a resilient isolation pad that work together to reduce flanking sound transmission from the building structure through a partition wall assembly. Both components are made primarily from 94% recycled rubber.

Application

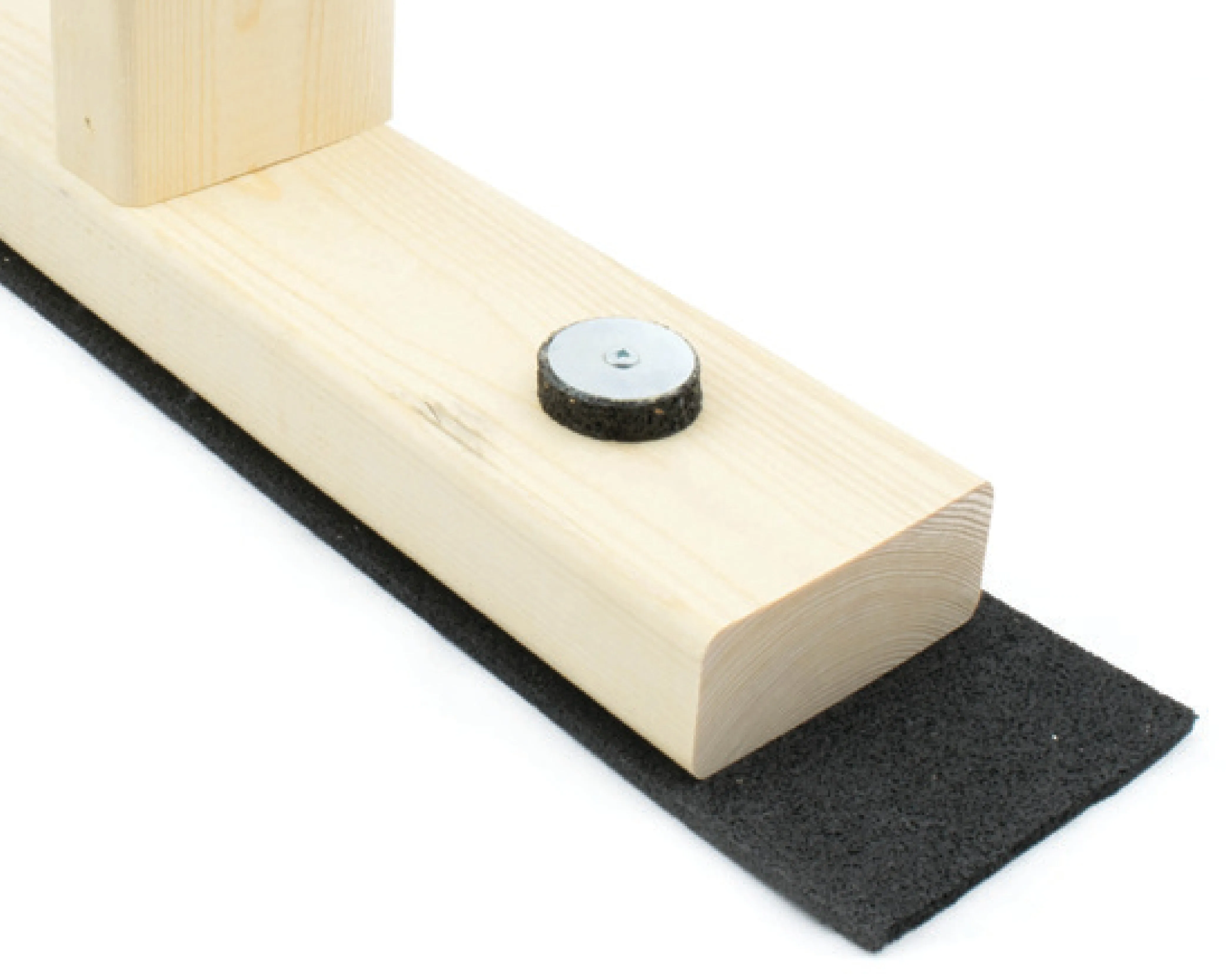

Used in conjunction with wood, steel and concrete block partition walls to isolate both top and bottom sill plates.

Features and Benefits

• Raised pedestal design for superior cushioning effect
• Significantly reduces flanking sound transmission
• Mold, bacteria, fungi, and water resistant
• Can contribute to LEED® points
• Can be used for a wide range of loadings
• Continuous resilient support of partitions

Dimension

• Outer Diameter: 1 7/16” (37 mm)
• Inner Diameter: 1/4” (6 mm)
• Overall Thickness: 1/2” (13 mm)
